Today I worked with some friends at integrating diginsight to a new web API.

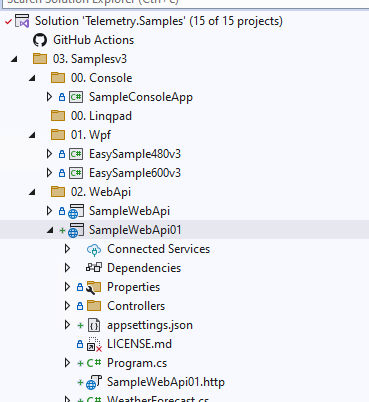

In this post I propose the steps we followed applied to the sample SampleWebApi01 available into the telemetry_samples repository.
You can use the steps below to obtain diginsight text based streams on Log4Net and the appservice Console.

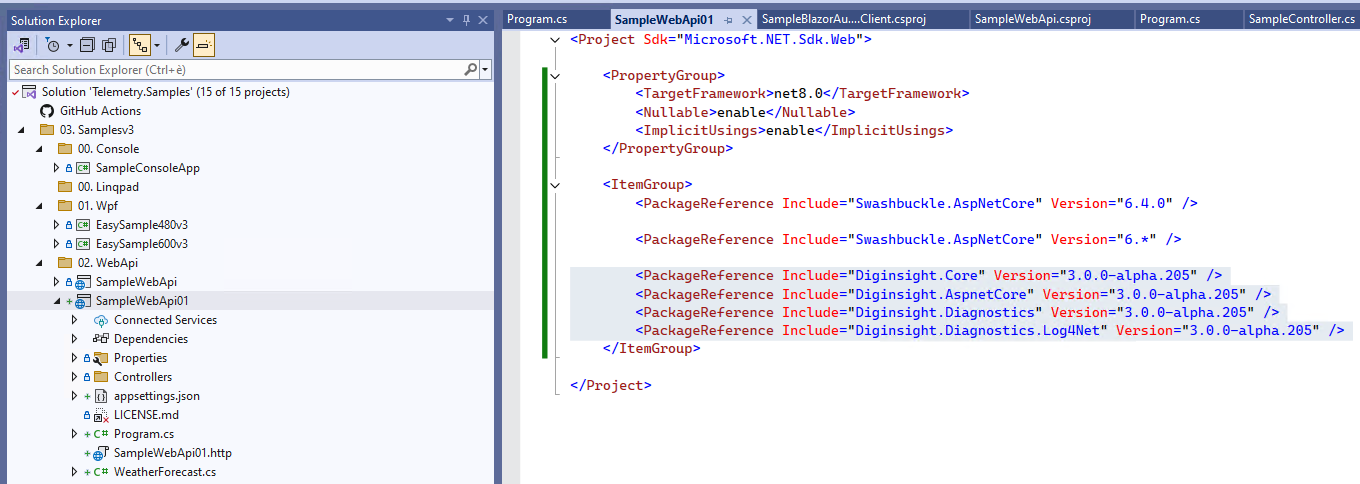

STEP01: Add references to diginsight packages
I start adding the following 3 references:
<PackageReference Include="Diginsight.AspnetCore" Version="3.0.0-alpha.205" />
<PackageReference Include="Diginsight.Diagnostics" Version="3.0.0-alpha.205" />
<PackageReference Include="Diginsight.Diagnostics.Log4Net" Version="3.0.0-alpha.205" />where:
- Diginsight.Diagnostics is the core engine for application flow rendering
- Diginsight.Diagnostics.Log4Net integrates Log4Net file logs
- Diginsight.AspnetCore allows support for Dynamic Logging and Dynamic Configuration.

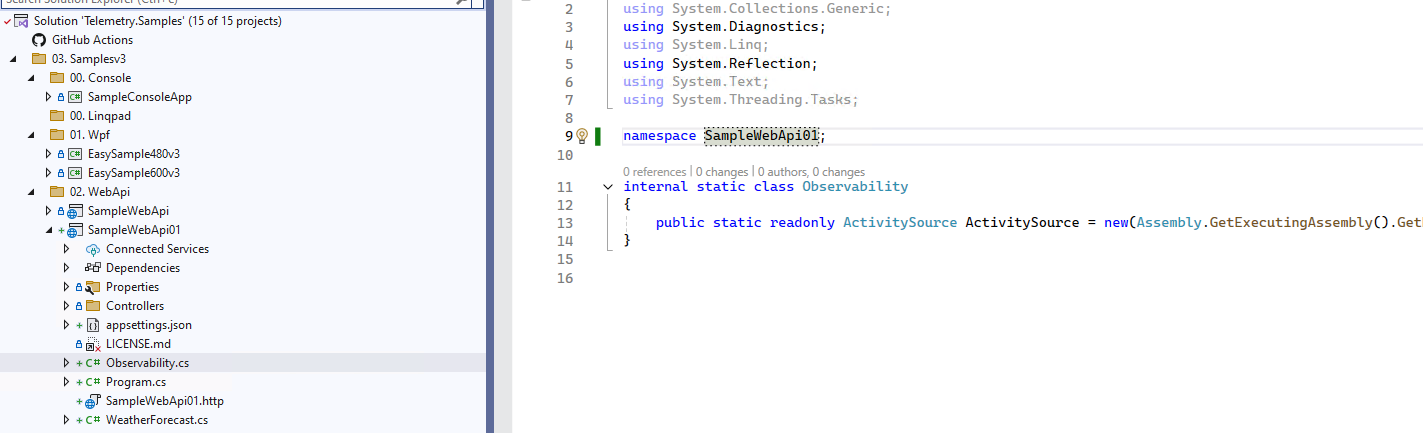

STEP02: Add the Observability ActivitySource to your projects
System Diagnostics emits telemetry by means of ActivitySource classes.
In our solution we’ll choose to use one ActivitySource class for every project, defined as below:
internal static class Observability
{
public static readonly ActivitySource ActivitySource = new(Assembly.GetExecutingAssembly().GetName().Name!);
}
STEP03: Configure the startup sequence with ‘AddObservability()’ method
At this point we can configure the Log4Net file stream logger and the Console logger within the service startup sequence.
we use an AddObservability extension method:
public static void Main(string[] args)
{
var app = default(WebApplication);
var builder = WebApplication.CreateBuilder(args);
builder.Host.ConfigureAppConfigurationNH();
builder.Services.AddObservability(builder.Configuration); // Diginsight: registers loggers
//...
//... register services
//...
app = builder.Build(); logger.LogDebug("app = builder.Build();");
logger.LogInformation("Configure the HTTP request pipeline.");
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI(c =>
{
c.SwaggerEndpoint("/swagger/v1/swagger.json", "KnowledgeAPI v1");
c.OAuthClientId(azureAd.ClientId);
c.OAuthUsePkce();
c.OAuthScopeSeparator(" ");
});
}
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
}
app.Run();
}where builder.Services.AddObservability(builder.Configuration); registers loggers for Log4net and the application Console as shown below:
public static class AddObservabilityExtension
{
public static IServiceCollection AddObservability(this IServiceCollection services, IConfiguration configuration)
{
// registers http context accessor
// this is used to manage dynamic logging and dynamic configuration
// when calls land to the controllers methods
services.AddHttpContextAccessor();
services.TryAddSingleton<IActionContextAccessor, ActionContextAccessor>();
// registers Logging providers for the Console and Log4Net
services.AddLogging(
loggingBuilder =>
{
loggingBuilder.AddConfiguration(configuration.GetSection("Logging"));
loggingBuilder.ClearProviders();
if (configuration.GetValue("AppSettings:ConsoleProviderEnabled", true))
{
// registers Logging providers for the Console
loggingBuilder.AddDiginsightConsole(configuration.GetSection("Diginsight:Console").Bind);
}
if (configuration.GetValue("AppSettings:Log4NetProviderEnabled", false))
{
// registers Logging providers for Log4Net
loggingBuilder.AddDiginsightLog4Net(
static sp =>
{
IHostEnvironment env = sp.GetRequiredService<IHostEnvironment>();
string fileBaseDir = env.IsDevelopment()
? Environment.GetFolderPath(Environment.SpecialFolder.UserProfile, Environment.SpecialFolderOption.DoNotVerify)
: $"{Path.DirectorySeparatorChar}home";
return new IAppender[]
{
new RollingFileAppender()
{
File = Path.Combine(fileBaseDir, "LogFiles", "Diginsight", typeof(Program).Namespace!),
AppendToFile = true,
StaticLogFileName = false,
RollingStyle = RollingFileAppender.RollingMode.Composite,
DatePattern = @".yyyyMMdd.\l\o\g",
MaxSizeRollBackups = 1000,
MaximumFileSize = "100MB",
LockingModel = new FileAppender.MinimalLock(),
Layout = new DiginsightLayout()
{
Pattern = "{Timestamp} {Category} {LogLevel} {TraceId} {Delta} {Duration} {Depth} {Indentation|-1} {Message}",
},
},
};
},
static _ => Level.All
);
}
}
);
// Loads options for diginsight activities
// this decides which activities should be traced into the text based streams
// for the console and Log4Net
services.ConfigureClassAware<DiginsightActivitiesOptions>(configuration.GetSection("Diginsight:Activities"))
.DynamicallyConfigureClassAwareFromHttpRequestHeaders<DiginsightActivitiesOptions>();
// Register DefaultDynamicLogLevelInjector for support of Dynamic logging
services.AddDynamicLogLevel<DefaultDynamicLogLevelInjector>();
return services;
}

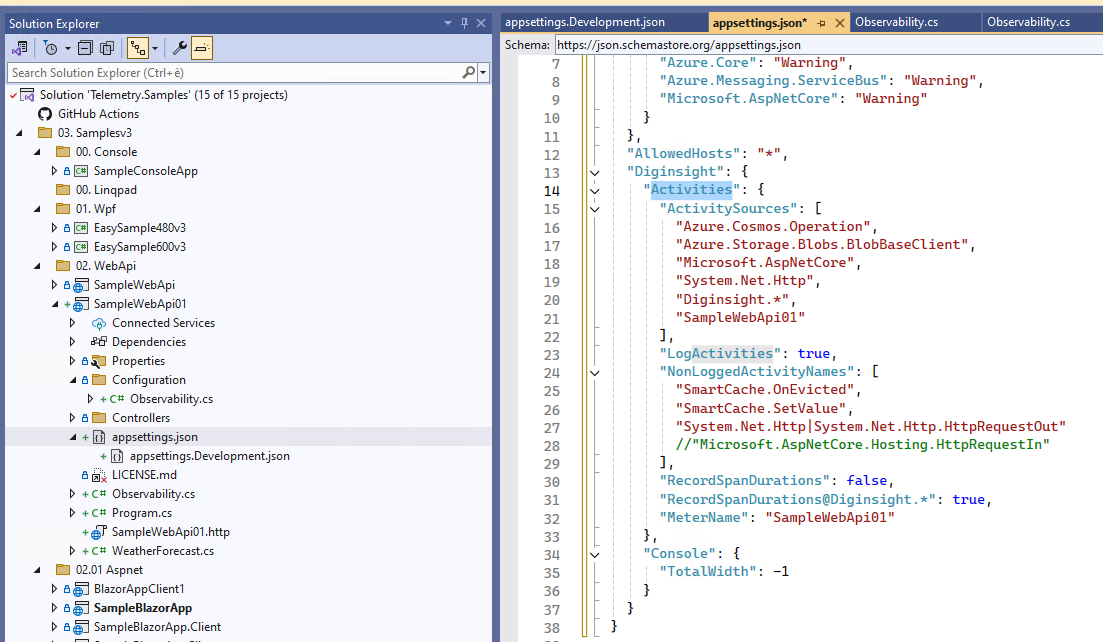

}Please, note that DiginsightActivitiesOptions are read from Diginsight:Activities the configuration section shown below:
Note that Diginsight:Activities settings are registered with ConfigureClassAware to ensure that such configurations can be specified with class level granularity (ref: Use ClassAware configurations)
Also note that AddHttpContextAccessor and AddDynamicLogLevel are used to ensure support for Dynamic logging (ref: Use dynamic logging):
services.AddHttpContextAccessor();
services.TryAddSingleton<IActionContextAccessor, ActionContextAccessor>();
services.AddDynamicLogLevel<DefaultDynamicLogLevelInjector>();Working code is available into SampleWebApi01 sample, within telemetry_samples repository.
STEP04 (Opt): add Instrumentation to the startup sequence
Startup sequence may be tricky and often hides startup issues that are very difficult to debug.
Diginsight provides full observability of the startup sequence by means of the DeferredLoggerFactory.
In particular, the DeferredLoggerFactory:
- gathers the execution flow until the the standard logging system is setup.
- Flushes recorded telemetry upon services creation, as soon as ILogger<> providers are installed.
here we create the deferred logger factory at application startup:
public static IDeferredLoggerFactory LoggerFactory;
static Program()
{
DiginsightActivitiesOptions activitiesOptions = new() { LogActivities = true };
IDeferredLoggerFactory deferredLoggerFactory = new DeferredLoggerFactory(activitiesOptions: activitiesOptions);
deferredLoggerFactory.ActivitySourceFilter = (activitySource) => activitySource.Name.StartsWith($"DS.");
LoggerFactory = deferredLoggerFactory;
}deferredLoggerFactory implements in memory recording of the application flow, until ILogger services are created.
After ILogger services creation, FlushOnCreateServiceProvider can be used to register Flush of the recorded application flow and redirection of the deferredLoggerFactory to the registered LoggerFactory.
The real Log flush is provided at services creation time by means of the Diginsight ServiceProvider. the Diginsight ServiceProvider is registered by means of UseDiginsightServiceProvider method as shown below.
The snippet below shows the main method where the startup flow is made observable by means of FlushOnCreateServiceProvider and UseDiginsightServiceProvider.
public static void Main(string[] args)
{
ILogger logger = LoggerFactory.CreateLogger(typeof(Program));
var app = default(WebApplication);
using (var activity = Observability.ActivitySource.StartMethodActivity(logger, new { args }))
{
var builder = WebApplication.CreateBuilder(args); logger.LogDebug("builder = WebApplication.CreateBuilder(args);");
builder.Host.ConfigureAppConfigurationNH(); logger.LogDebug("builder.Host.ConfigureAppConfigurationNH();");
builder.Services.AddObservability(builder.Configuration); // Diginsight: registers loggers
builder.Services.FlushOnCreateServiceProvider(LoggerFactory); // Diginsight: registers startup log flush
// ...
// services registration omitted.
// ...
var webHost = builder.Host.UseDiginsightServiceProvider(); // Diginsight: Flushes startup log and initializes standard log
app = builder.Build(); logger.LogDebug("app = builder.Build();");
logger.LogInformation("Configure the HTTP request pipeline.");
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI(c =>
{
c.SwaggerEndpoint("/swagger/v1/swagger.json", "KnowledgeAPI v1");
c.OAuthClientId(azureAd.ClientId);
c.OAuthUsePkce();
c.OAuthScopeSeparator(" ");
});
}
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
}
app.Run();
}STEP05: add Instrumentation log to methods and return values
We are now ready to add automatic instrumentation to methods and return values:
here is an example method start
[HttpGet(Name = "GetWeatherForecast")]
public IEnumerable<WeatherForecast> Get()
{
using var activity = Observability.ActivitySource.StartMethodActivity(logger);here is an example method completion where the result value is added to the method closing row:
activity?.SetOutput(ret);
return ret;

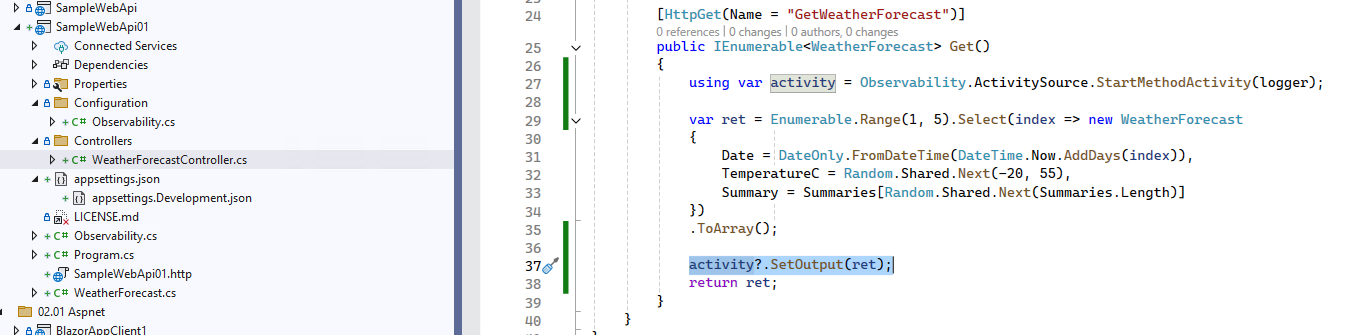

}the real code may looks as shown below:

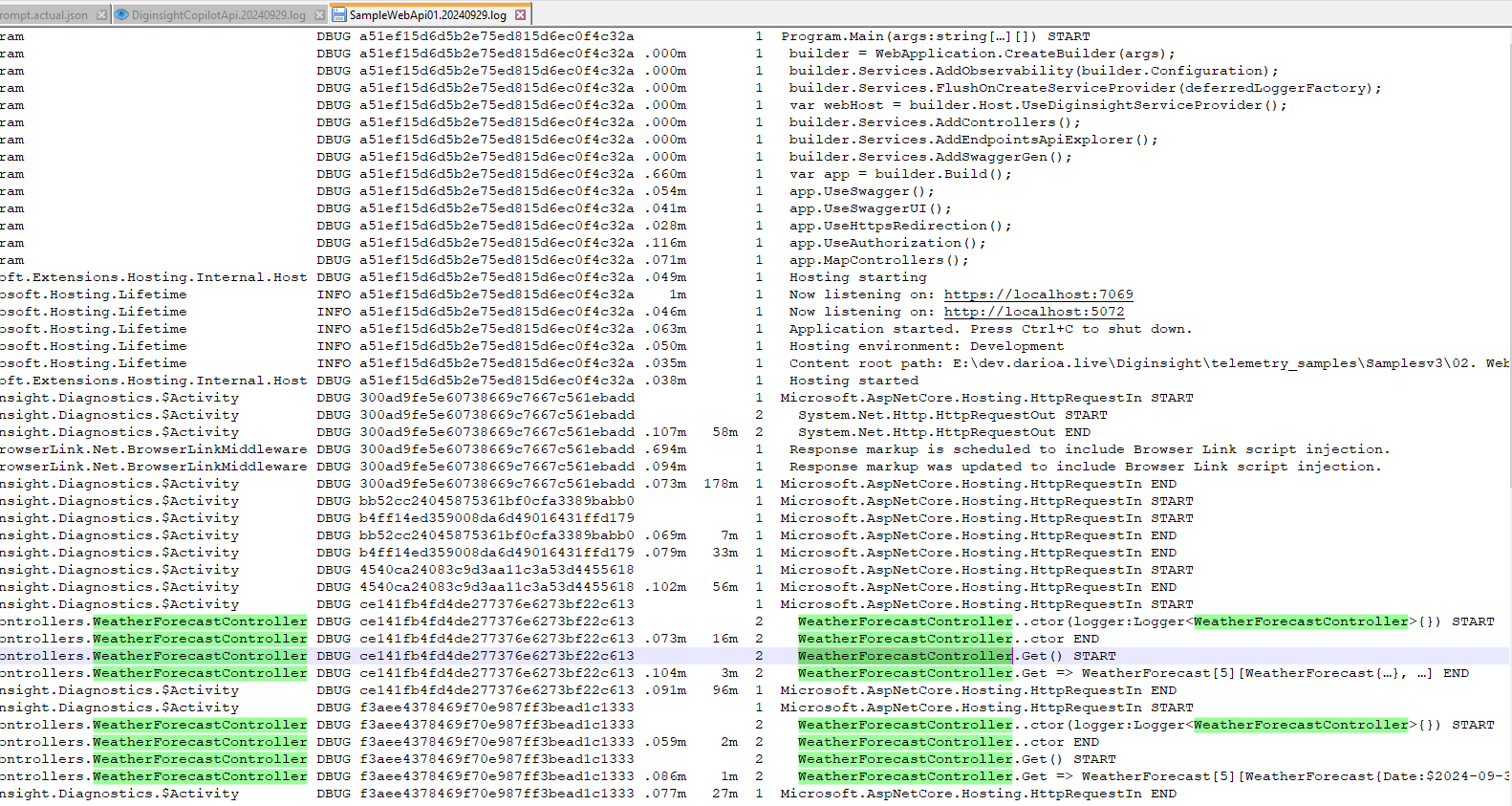

here is the resulting flow for the service startup and an API call:
